header design and build

Thinking of building my own headers for my 2002mustang with a 460 in it.

Header style and design is a question i have. Along with some fab questions.

I posted three pics of completely different header design. Two look very restrictive and teh maddog headers look simple, clean and free flowing.

I plan on using a motor plate and a trans crossmember (no midplate)

I also thought about picking up a "weld your own kit" to 1. save cash 2. get the experience.

I have a mig welder with gas at the house.

Anyone have tips or tricks to not screw this up , or should i just spend the money of already build headers- if i make my own i planned to flow the design of the maddog one since they look the easiest and look less restrictive.




all of these are around the same pricing.

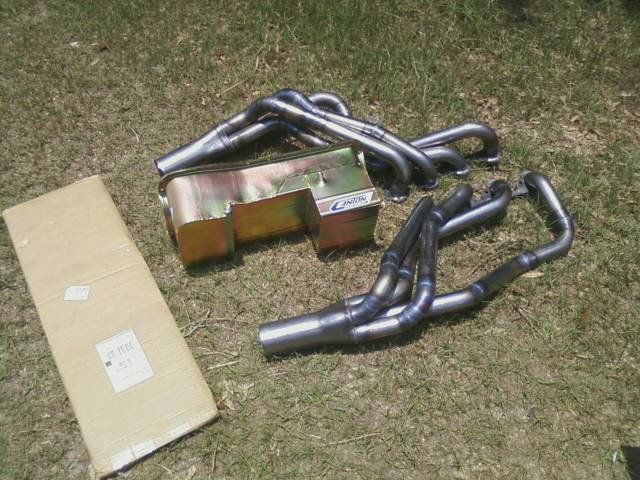

maddog headers





Hooker supercomp

D&D autospec
