4 wheel brake plumbing

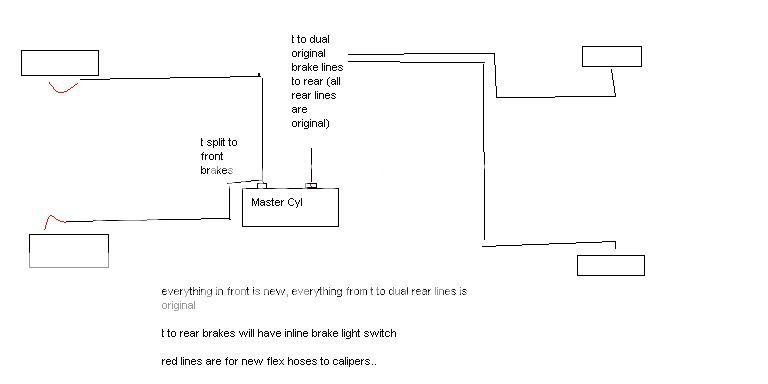

ok i need to plumb the brake system today. below is my crude drawing of my plan.

4 wheel DISC brakes
cobra master cylinder
manual brake conversion with correct pedal
all original rear brakes and lines
I do have a proportioning valve from wilwood, but unsure if needed, or where to place

I need to plumb this today if you see something wrong please post, or call me!!!! 4843189865 Frank

frank13 is offline
Sponsored Links
Advertisement

post #2 of 5 (permalink) Old 11-01-2009, 09:49 AM
Senior Member

Join Date: Jan 2006
Location: Cuba MO
Posts: 5,316
Mentioned: 0 Post(s)
Tagged: 2 Thread(s)
Quoted: 185 Post(s)

That should work ok as far as I can tell.

Any sufficiently advanced technology is indistinguishable from magic --Arthur C. Clarke

Dave McLain
McLain's Automotive
DaveMcLain is offline
post #3 of 5 (permalink) Old 11-01-2009, 10:42 AM
Senior Member

96Mustang460cid's Avatar

Join Date: Jan 2006
Location: Oklahoma, USA
Posts: 1,170
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)

Put the proportioning valve between the m/c and the rear brakes.

Because of weight transfer while braking, the rear brakes don't 'brake' as much as the front brakes. With that being the case, the proportioning valve goes inline with the rear brakes to reduce the line pressure ---> thereby reducing the amount of braking force supplied by the rear brakes.

If you don't 'need' the proportioning valve, you can open it all the way up. Like that, the rear brakes won't be affected by its pressence.

Have a good day!
Mcihael

Have a good day!
Michael

2003 F150 Supercrew
BBF
Turbo

1996 Ford Mustang
2.3t w/ HE351VE turbo
12.10 @ 114 mph
96Mustang460cid is offline

post #4 of 5 (permalink) Old 11-01-2009, 11:52 AM
Forum Contributor

69F100's Avatar

Join Date: Jan 2009
Location: Irwinville Ga.
Posts: 1,398
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)

The proprtioning valve help if you have to brake in a hurry it helps keep the rear from locking up as quick and lets the front work better by reducing line pressure i would use it but will work without just might throw you in a spin in haevy brake without it

x2 on what Micheal said
69F100 is offline
post #5 of 5 (permalink) Old 11-02-2009, 10:51 AM Thread Starter
Senior Member

frank13's Avatar

Join Date: Aug 2008
Location: Philadelphia
Posts: 1,115
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)

Send a message via AIM to frank13
Quote:
Originally Posted by 96Mustang460cid View Post
Put the proportioning valve between the m/c and the rear brakes.

Because of weight transfer while braking, the rear brakes don't 'brake' as much as the front brakes. With that being the case, the proportioning valve goes inline with the rear brakes to reduce the line pressure ---> thereby reducing the amount of braking force supplied by the rear brakes.

If you don't 'need' the proportioning valve, you can open it all the way up. Like that, the rear brakes won't be affected by its pressence.

Have a good day!
Mcihael

Have a good day!
Michael

Mike were you the one who called me? If so thanks!


To everyone else who helped: Thanks! I appreciate all your help!!!!
