There has been some talk lately about how stock rods compare to some of the 5140 rods on the market. I don't have any Eagle SIR rods on hand, but I do have some some RPM 5140 rods, so I took a few pictures to show the differences. The RPM rods in these pictures are 6.800 stroker versions with 2.2 journals, but the 6.605 versions are built very much the same.

Overall view of the two rods side by side. Notice the difference in the thickness of the material around the big end. Also notice that the RPM rods have 7/16" ARP bolts vs. the stocker's 3/8". While the RPM beam is narrower in width, it is about .060 thicker across the webbing.




Close-up of the small end. Again notice the thickness of material around the pin as well as the width.



·
Registered
Joined
·
5,316 Posts
Here are a few pictures of the Eagle SIR rod that I had fail in a 460. I posted a description of this problem in a previous post but I didn't take any pictures. Here they are in all their gory detail:

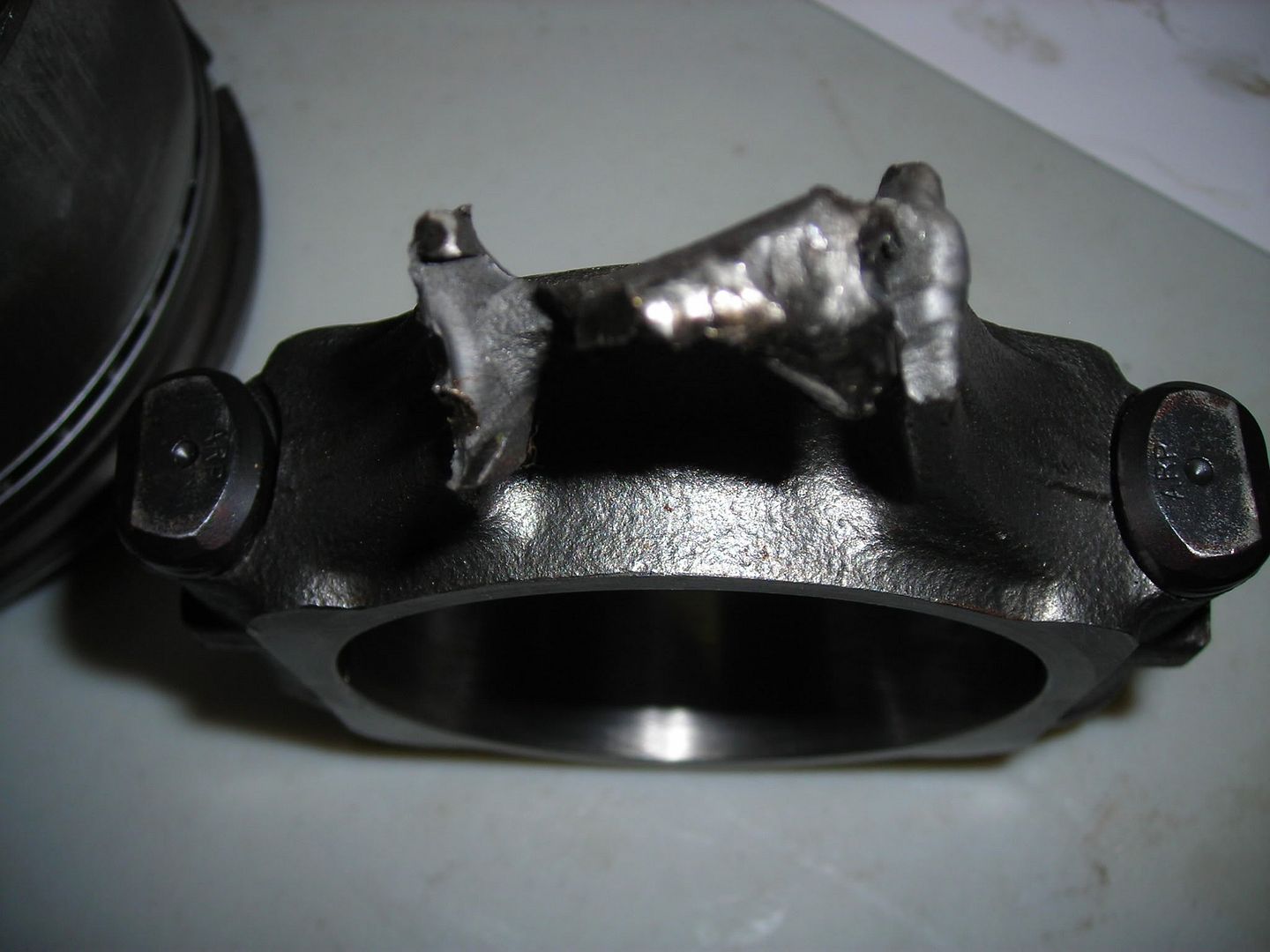

Notice how the rod completely failed in the beam yet the big and small end were totally intact and undamaged. Bearings, rod journal, wrist pin etc all looked great. These rods were run in a 460 that was only ever turned a maximum of 6500rpm and when run in the application 6200rpm. Admittedly the KB 137 is not a light piston but the rpm level wasn't that high either. Engine horsepower was 585 and the engine ran a best et of 6.50 at 100 mph in the 1/8th mile in a 1962 Ford pickup. This was Wes Littrell's cousin Shannon's truck that was at the bash a few years ago.

These rods were used in the 460 I built for the Engine Masters' Challenge back in '03 so they probably had around 100 dyno pulls and probably 40-50 drag racing passes total.

While it's difficult to tell from the pictures it seems as though the RPM rod has possibly a bit more "beef" in the beam. This is the problem area on the SIR rods of the design that failed but I've also heard that Eagle has improved this design within the last couple of years, is this true?











·
Registered
Joined
·
877 Posts
How wide and how thick is the beam on the eagle compared to the rpm? I can measure my set of Eagle's when I get home if someone does not beat me to it.


·
Registered
Joined
·
5,483 Posts
Discussion Starter #5 (Edited)
Looks like the SIR snapped up near the pin first. The RPM rod is a little more beefy up there, and so are the new Ford rods. Did Eagle make a change there too?


·
Registered
Joined
·
5,316 Posts
It's tough to say. I do know that in this failure the starter was knocked off of the engine going 100mph and lost! The engine was still running and the truck was driven back to the pits. So this means that the section of the rod that was banging around was at least pretty much longer than it is now for a while anyway. It was at least long enough to come through the pan and pan rail and hit the starter motor with enough force to break it off of the end piece.

I had an SIR rod fail in a small Chevy engine too however and that one must have broken nearer to the big end because it didn't do much damage at all inside of the engine. It didn't even hit the cam on a 400!


·
Registered
Joined
·
5,316 Posts
That rod looks to have more material around the big end and possibly the small end too. But in both of the failures that I've had those areas of the rod were just fine. I'd say that if that rod has a similar cross section in the beam failures WILL occur, sooner or later and probably sooner with a typical weight piston and pin even at very moderate rpm and power levels.


·
Registered
Joined
·
66 Posts
Why waste money on either rod? Seems to me an addition $100 to $150 dollars solves any issue with the beams breaking, get the H-beams and be done with it.

Neither rod you have shown are any better IMO than a well preped stock rod, other than being new, they both exhibit the same flaws and shortcommings of the factory part.


·
Registered
Joined
·
5,483 Posts
Discussion Starter #10 (Edited)
the rod you have shown is better than a well preped stock rod, it's new, it's made of stronger material, it has bigger stronger bolts and thicker beams, but it may still break when pushed beyond it's limitations, just like any other part.
Fixed it for you. :D


·
Registered
Joined
·
5,483 Posts
Discussion Starter #12
Sorry but my advise is ALWAYS based on what's best for the person I'm speaking with, and never based on what's best or most profitable for me.

I sell stock rods AND aftermarket rods. As a matter of fact, I make more money on reconditioned stock rods than aftermarket rods like these.

I started this thread with the intention of being informative and maybe having a little technical debate. Not really very happy about taking the time to do so at this point.

Moderators: please feel free to delete this thread, or at least remove the negative posts.
